Industrial waterproof Honeycomb aluminum panel For exterior curtain wall

Industrial waterproof Honeycomb aluminum panel For exterior curtain wall

    • Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
    • Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
    • Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
    • Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
    • Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
  • Industrial waterproof Honeycomb aluminum panel For exterior curtain wall

    Product Details:

    Place of Origin: China Mainland
    Brand Name: OUSILONG
    Certification: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test
    Model Number: Wall panel

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 m2
    Price: Negotiation
    Packaging Details: Export carton
    Delivery Time: 15 working days
    Payment Terms: T/T, L/C
    Supply Ability: 5000M2//week
    Contact Now
    Detailed Product Description
    Color: White Material: Aluminum
    Surface Finish: Fluorine Carbon Coated Size: Length Maximum 6000mm
    Delivery: 15 Days MOQ: 500 M2

    Industrial waterproof Honeycomb aluminum panel For exterior curtain wall

    Aluminum Honeycomb Panel, decorative panel, shopping mall, exhibition hall

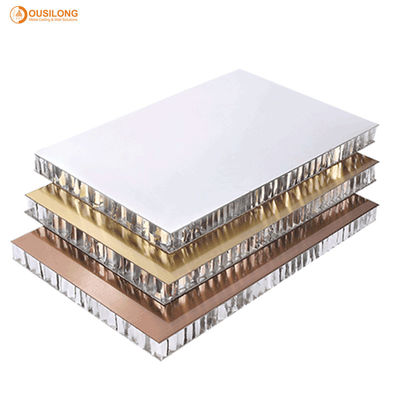

    The aluminum honeycomb panel is made of honeycomb core, surface aluminum panel and bottom aluminum panel adhesive with environmental protection glue. Its main materials are high-quality of 3003H24 or 5052AH14 aluminum plates with thickness of 0.8-1.5mm for surface panel and 0.6-1.0mm for bottom panel. The patterns can be stone, marble/granite/ceramic, wood veneer/bamboo veneer, stainless steel, fiberglass (FRP), etc.



    Usually, the surface aluminum panel is treated by PVDF coating or PE coating. PVDF(Polyvinylidene Fluoride) coating is suitable for outdoor because of its good  properties of anti-weathering, anti-contamination and self-cleaning. Due to Polyester(PE) paint’s great nature, it can achieve versatile vivid color and higher gloss rate than PVDF. It is ideal for interior wall, decoration and signboard materials. And it can cut down your cost a lot.



    Industrial waterproof Honeycomb aluminum panel For exterior curtain wall


    Specification



     Type

     Material

     Thickness

     Surface
     Coating

     Size

     Color

     Aluminum  Honeycomb  Panel

     Aluminum    alloy

     Standard  thickness:

     10, 12, 15,

     18, 20, 25mm;  Custom

     made

     available

     Fluorine

     carbon

     coated

     Standard width:

     1220, 1250, 1500mm

     Length≤6000mm

     Width≤1500mm

     Subject

     to user

     demand





    materials Panel material: Aluminum
    Imitate marble,wood grain color and  RAL color
    we can accept your OEM designs
    Demension Standard size:1220*2440mm
    Thickness:6mm,8mm,10mm to 20mm
    bend,cut,drill,joint shapes,sculpture available
    Feature 1)strong impact endurance
    2)natural marble texture with high transparent
    3)Sound absorption,waterproof
    4)superior stain&bacteria&chemical resistance
    Surface treatment Fluorine Carbon Coaed
    Application 1)External wall panel
    2) Interior decorative panel
    3) Partition panel
    4)Ceiling, roof board
    5)Carriage, ship hull and etc



    Industrial waterproof Honeycomb aluminum panel For exterior curtain wall




    Features:

    1. Aluminum Honeycomb Panel bases on grade 3003 aluminum alloy sheet, and the aluminum sheet owns
       water - proof property. After PVDF coated on its surface, the whole panel has weather resistance, chemical preservation and etc;
    2. When in installation, panels are tightly connected with sealed aluminum profiles from four sides, so as to
       prevent rainwater from osmosis;
    3. Plug - in installation method & weather silicone sealant are applied to achieve the best water - proof effect;
    4. Durable, Washable, Scrubbable, Mortar - resistant, Corrosion - resistance;
    5. Custom made metal walls available to coordinate with ceilings and other interior/exterior finishings;
    6. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;


    Accessaries:

    Aluminum Honeycomb Panel is with professional mold design, even panel surface, distinct edges & lines, and clear & concise. All of these create a pleasant visual space. It has multiple accessibility options.

    Industrial waterproof Honeycomb aluminum panel For exterior curtain wall




    Application:

    Industrial and civil buildings, special buildings, large span steel structure, building roof, exterior & interior wall decoration, facades of municipal buildings, exhibition halls, airports, stadiums, anti - corrosion of steel structures, oil platform etc.




    Installation:

    OUSILONGTM aluminum honeycomb panel is fully made from aluminum which is recyclable and environmental friendly. Besides, the fusion point of aluminum is 660.4℃, so the panel is ultimately fireproof.  Since it weighs much lighter but with high intensity, the panel can be widely used on curtain wall. Especially on buildings, it’s capable to bear strong wind pressure so that it meets requirement for large lattices on the curtain wall of super big & high buildings. This product also has good flatness and it is easy to process.
    Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
    Industrial waterproof Honeycomb aluminum panel For exterior curtain wall
