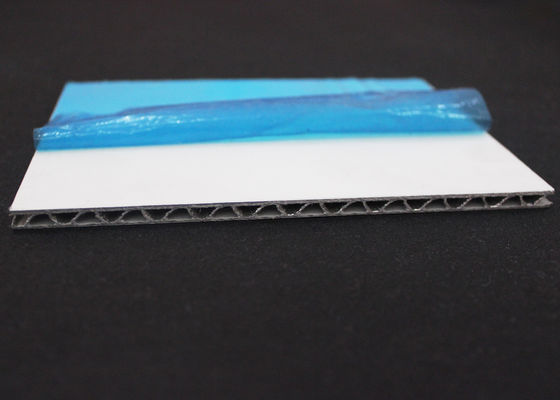

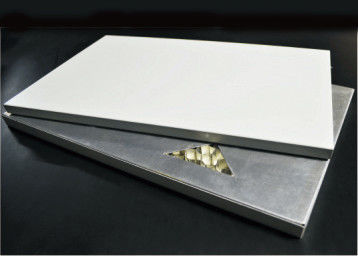

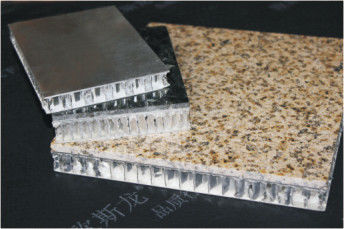

Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel

Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel

    • Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel
    • Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel
    • Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel
    • Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel
  • Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel

    Product Details:

    Place of Origin: China Mainland
    Brand Name: OUSILONG
    Certification: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test
    Model Number: N/A

    Payment & Shipping Terms:

    Price: Negotiation
    Packaging Details: Export carton
    Delivery Time: 15 working days
    Payment Terms: T/T, L/C
    Supply Ability: 4,000 PCS/week
    Contact Now
    Detailed Product Description

    Exterior Cladding Aluminum Honeycomb Panel , Decorative Wall and Ceiling Panel

    Aluminum Honeycomb Panel, opera house, exhibition hall, shopping centre


    Product details

    1. Product code: N/A
    2. Color: RAL color available
    3. Dimension: 1220 x 2440mm, Custom made available
    4. Surface finishing: Fluorine carbon coated
    5. Material: Aluminum alloy
    6. Thickness: 18mm, 6~90mm available
    7. Shape: Free shape, custom made available
    8. Temperature tolerance: -60℃~ +120℃
    9. Warranty: 15-20 years


    Specification


     Type

     Material

     Thickness

     Surface
     Coating

     Size

     Color

     Aluminum  Honeycomb  Panel

     Aluminum    alloy

     Standard  thickness:

     10, 12, 15,

     18, 20, 25mm;  Custom

     made

     available

     Fluorine

     carbon

     coated

     Standard width:

     1220, 1250, 1500mm

     Length≤6000mm

     Width≤1500mm

     Subject

     to user

     demand



    Features:

    1. Aluminum Honeycomb Panel bases on grade 3003 aluminum alloy sheet, and the aluminum sheet owns
       water - proof property. After PVDF coated on its surface, the whole panel has weather resistance, chemical preservation and etc;
    2. When in installation, panels are tightly connected with sealed aluminum profiles from four sides, so as to
       prevent rainwater from osmosis;
    3. Overlong weather resistance, anti - acid, alkali;
    4. Good self - cleaning, high gloss, abundant colors;
    5. Anti - pollution, easy to clean;
    6. Durable, Washable, Scrubbable, Mortar - resistant, Corrosion - resistance;
    7. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
    8. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;


    Accessaries:

    Aluminum Honeycomb Panel is with professional mold design, even panel surface, distinct edges & lines, and clear & concise. All of these create a pleasant visual space. It has multiple accessibility options.


    Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel




    Application:

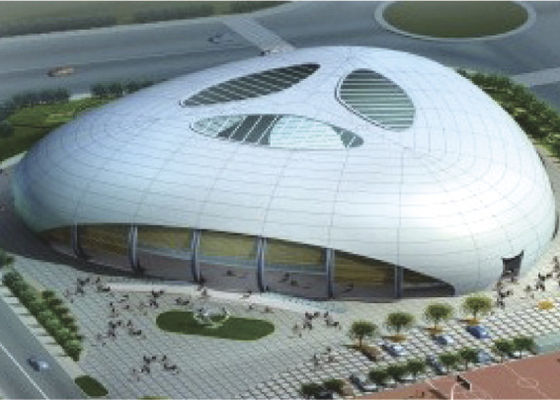

    Industrial and civil buildings, special buildings, large span steel structure, building roof, exterior & interior wall decoration, facades of municipal buildings, exhibition halls, airports, stadiums, anti - corrosion of steel structures, oil platform etc.




    Installation:

    OUSILONGTM aluminum honeycomb panel is fully made from aluminum which is recyclable and environmental friendly. Besides, the fusion point of aluminum is 660.4℃, so the panel is ultimately fireproof.  Since it weighs much lighter but with high intensity, the panel can be widely used on curtain wall. Especially on buildings, it’s capable to bear strong wind pressure so that it meets requirement for large lattices on the curtain wall of super big & high buildings.


    Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel
    Exterior Cladding High class Aluminum Honeycomb Panel / Decorative Wall Ceiling Panel
