Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium

Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium

    • Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium
    • Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium
    • Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium
    • Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium
  • Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium

    Product Details:

    Place of Origin: China Mainland
    Brand Name: OUSILONG
    Certification: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test
    Model Number: N/A

    Payment & Shipping Terms:

    Price: Negotiation
    Packaging Details: Export carton
    Delivery Time: 15 working days
    Payment Terms: T/T, L/C
    Supply Ability: 4,000 PCS/week
    Contact Now
    Detailed Product Description

    Free shape Commercial Ceiling Tiles / Aluminum Solid Panel, Honeycomb Core Panel

    Aluminum Solid Panel, exterior wall, industrial and civil building, gymnasium



    Product details

    1. Product code: N/A
    2. Color: Silver, RAL color available
    3. Dimension: Custom made available
    4. Surface finishing: PVDF spray coating / Polyester oil coating
    5. Material: Aluminum alloy
    6. Thickness: 2.0mm, 2.5mm, 3.0mm, custom made available
    7. Shape: Curved, custom made available
    8. Warranty: 15-20 years


    Specification



     Type

     Material

     Thickness

     Surface
     Coating

     Size

     Component

     Color

     Aluminum  Solid    Panel

     rustproof  high -  strength

     alloy  aluminum  sheet

     2.0mm,  2.5mm,  3.0mm

     multi - layer

     PVDF coating

     involving

     international

     known paints e.g.  PPG(USA), AKZO- NOBEL, Valspa

     as base

     materials

     Length≤6.0m

     Width≤1.8m

     Reinforcement,  hanger

     Silver,  Subject

     to user

     demand



    Features

    1. Durable, Washable, Scrubbable, Mortar - resistant;
    2. Multiple accessibility options;
    3. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
    4. Nice pigment wet ability, no static, non - flammable;
    5. Overlong weather resistance, anti - acid, alkali;
    6. Resistance, anti - corrosion, 3 to 5 times chemical resistance to common resins;
    7. Good self - cleaning, high gloss, abundant colors;

    8. Unique system solutions or custom made designs;
    9. Outstanding performance with high quality products;
    10. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;



    Coating Diagram

    PVDF - coated aluminum panel involves alloy panel as base material, which is coated with primer and color  finish paint after pretreatment and sprayed with PVDF on surface layer.

    The product is fabricated by three - coating & one - baking of PVDF paint. Curing quality is the key for the product. Curing oven of air bridge - based design is adopted, which provides temperature of fluctuation within ±2 ℃. The temperature evenness brings performance of PVDF paint film up to optimal state.


    Our company successively introduced LFK numerical control sheet metal equipment, German MILLER argon arc welding machine and Japanese RANSBAG full - automatic coating equipment, all advanced in the world.

    Adopting high - quality alloy aluminum sheet, German HENKEL pretreatment agent, AKZO-NOBEL, PPG and Valspar PVDF coating, the company strictly observes requirements in ISO9001-2008 quality management system to bring product quality up to the internal control standard od AAMA2605-98.


    Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium


    Characteristics


    1. Free shape, aesthetics of personality
    Different geometric figures can be made by bending, punching and arc rolling subject to user demand, presenting designer’s idea in full.

    2. Strong weather resistance, good self-cleaning performance

    The PVDF base materials Kynal 500 and Hylar 5000(content:70%)can effectively resist acid rain, air pollution and ultraviolet ray. Special molecular structure can prevent dust from attachment to surface thus provide good self - cleaning performance.


    3. Good fire prevention in accordance with fire fighting requirements
    Acting as ornaments of the product, high - strength aluminum alloy, PVDF paint and stone panel are non - flammable thus fire acceptance can be passed in full.

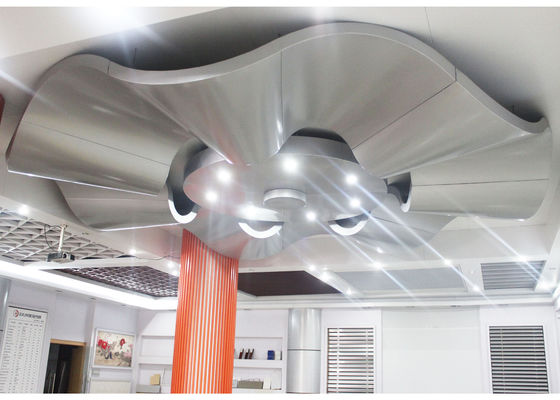

    Parts of actual models of aluminum panel


    Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium


    Application

    Building exterior wall, anti - corrosion of steel structure, oil platform, ships, chemical pipelines, airplane, bridges and etc.



    Installation

    OUSILONG panel is with advanced & unique production technology, which is the superior product with professional mold design, even panel surface, distinct edges & lines, and clear. All of these create a pleasant visual space.

    Free shape Commercial Aluminum Ceiling Tiles Solid Panel Honeycomb Core For gymnasium
