Solid Aluminum Wall Panels

Solid Aluminum Wall Panels

    • Solid Aluminum Wall Panels
    • Solid Aluminum Wall Panels
    • Solid Aluminum Wall Panels
    • Solid Aluminum Wall Panels
  • Solid Aluminum Wall Panels

    Product Details:

    Place of Origin: China Mainland
    Brand Name: OUSILONG
    Certification: ISO9001:2008, ISO14001:2004, GB/T28001-2011, SGS Test
    Model Number: N/A

    Payment & Shipping Terms:

    Price: Negotiation
    Packaging Details: Export carton
    Delivery Time: 15 working days
    Payment Terms: T/T, L/C
    Supply Ability: 4,000 PCS/week
    Contact Now
    Detailed Product Description

    Non - Flammable Aluminum Solid Panel , Wooden Aluminium Decorative Tiles



    Aluminum Panel, exterior wall, industrial and civil building, gymnasium




    Product details

    1. Product code: N/A
    2. Color: Wooden, RAL color available
    3. Dimension: 200 x 300mm, custom made available
    4. Surface finishing: PVDF spray coating
    5. Material: Aluminum alloy
    6. Thickness: 2.0mm, 2.5mm, 3.0mm, custom made available
    7. Shape: Rectangle, custom made available
    8. Edge profile: straight
    9. Warranty: 15-20 years


    Specification



     Type

     Material

     Thickness

     Surface Coating

     Size

     Component

     Color

     Aluminum  Panel

     rustproof  high-strength  alloy  aluminum  sheet

     2.0mm,  2.5mm,  3.0mm

     multi-layer PVDF  coating involving  international known  paints e.g.  PPG(USA),  AKZO-  NOBEL, Valspa  as  base materials

     Length≤6.0m

     Width≤1.8m

     Reinforcement,  hanger

     Wooden,  Subject to  user  demand



    Features

    1. Durable, Washable, Scrubbable, Mortar-resistant;
    2. Multiple accessibility options;
    3. Various standard and wide choice perforations;
    4. Excellent fire(&weather)-resistance performance;
    5. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
    6. Nice pigment wet ability, no static, non-flammable;
    7. Overlong weather resistance, anti-acid, alkali;
    8. Resistance, anti-corrosion, 3 to 5 times chemical resistance to common resins;
    9. Good self-cleaning, high gloss, abundant colors;
    10. Certificate: ISO9001:2008, ISO14001:2004, GB/T28001-2011, SGS Test etc;




    Coating Diagram



    PVDF-coated aluminum panel involves alloy panel as base material, which is coated with primer and color finish paint after pretreatment and sprayed with PVDF on surface layer.

    The product is fabricated by three-coating & one-baking of PVDF paint. Curing quality is the key for the product. Curing oven of air bridge-based design is adopted, which provides temperature of fluctuation within ±2 ℃. The temperature evenness brings performance of PVDF paint film up to optimal state.

    Our company successively introduced LFK numerical control sheet metal equipment, German MILLER argon arc welding machine and Japanese RANSBAG full-automatic coating equipment, all advanced in the world. Adopting high-quality alloy aluminum sheet, German HENKEL pretreatment agent, AKZO-NOBEL, PPG and Valspar PVDF coating, the company strictly observes requirements in ISO9001-2008 quality management system to bring product quality up to the internal control standard od AAMA2605-98.



    Solid Aluminum Wall Panels


    Characteristics


    1. Free shape, aesthetics of personality


    Different geometric figures can be made by bending, punching and arc rolling subject to user demand, presenting designer’s idea in full.

    2. Strong weather resistance, good self-cleaning performance


    The PVDF base materials Kynal 500 and Hylar 5000(content:70%)can effectively resist acid rain, air pollution and ultraviolet ray. Special molecular structure can prevent dust from attachment to surface thus provide good self-cleaning performance.

    3. Good fire prevention in accordance with fire fighting requirements


    Acting as ornaments of the product, high-strength aluminum alloy, PVDF paint and stone panel are non-flammable thus fire acceptance can be passed in full.


    Parts of actual models of aluminum panel



    Solid Aluminum Wall Panels

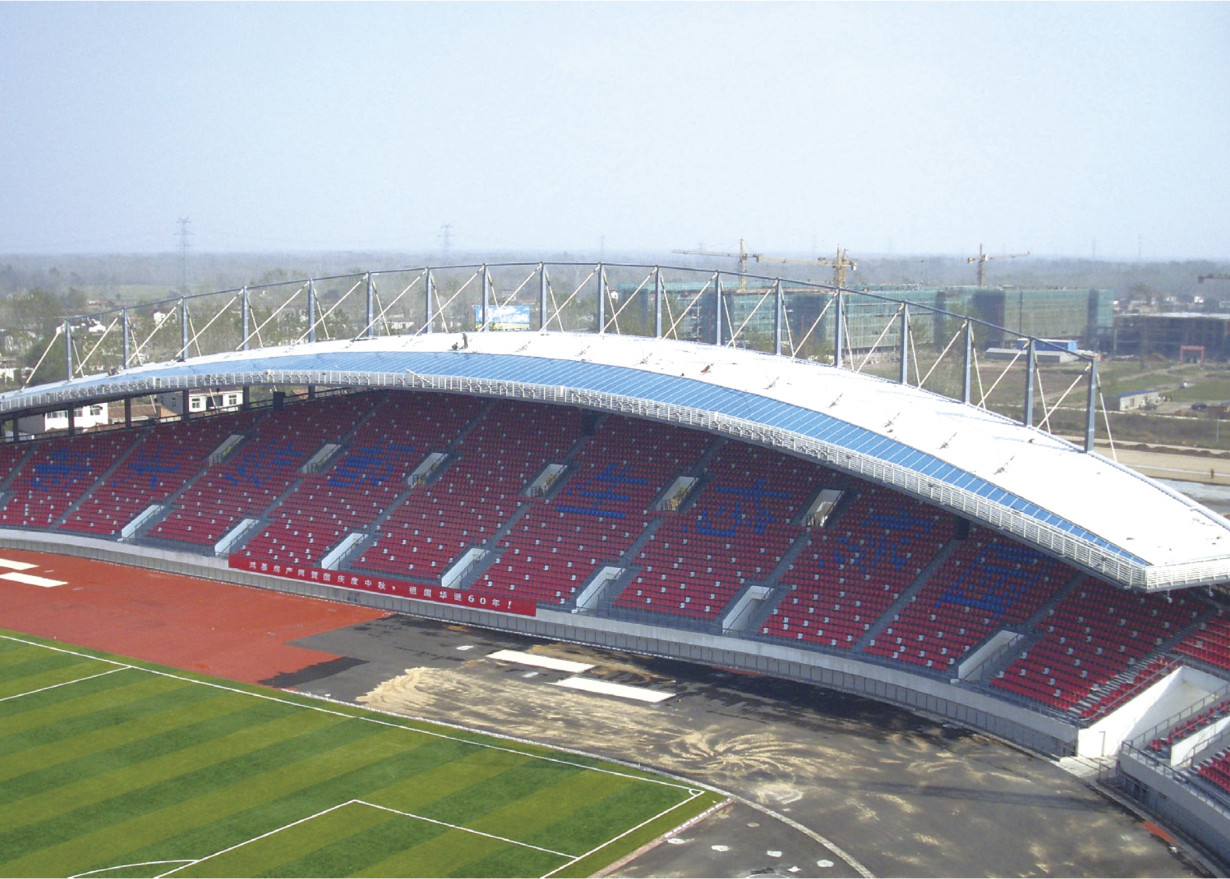

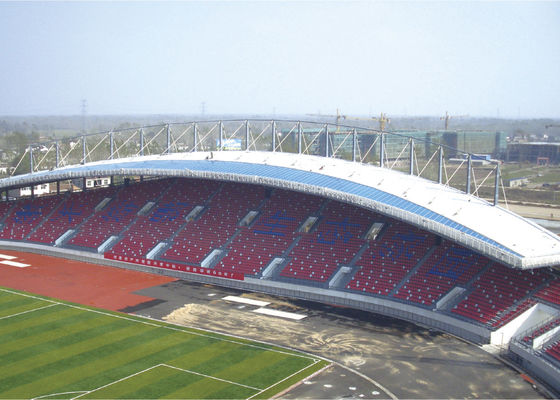

    Application

    Building exterior wall, anti-corrosion of steel structure, oil platform, ships, chemical pipelines, airplane, bridges and etc.





    Installation



    OUSILONG ceilings feature at fireproof, anti-corrosion, thermo stability and good weather resistance. The colors keep fresh for a long time. Many kinds of sizes are available. “#”-shaped roof beam, “#”-shaped partition, strip partition and other diving joint effect can be achieved.



    Solid Aluminum Wall Panels
