Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Color: | Traffic White |
|---|---|---|---|
| Thickness: | 0.7~1.1mm | Width: | 300mm |
| Length: | Maxmum 6000mm | Application: | Shopping Mall, Office, Airport & Etc. |
| Highlight: | aluminium Linear ceiling,Linear Metal Ceiling |
||

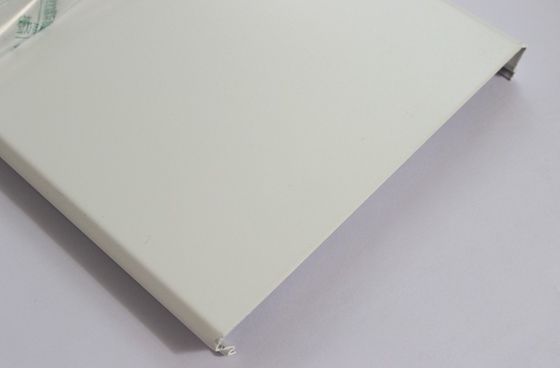

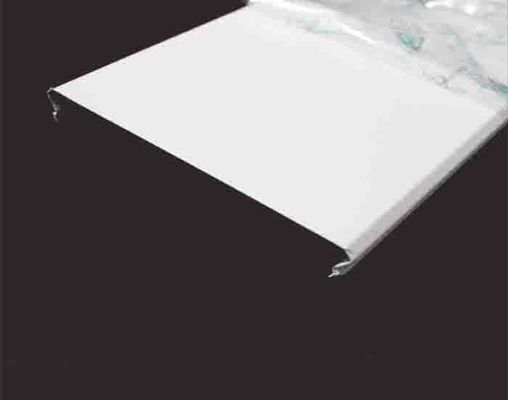

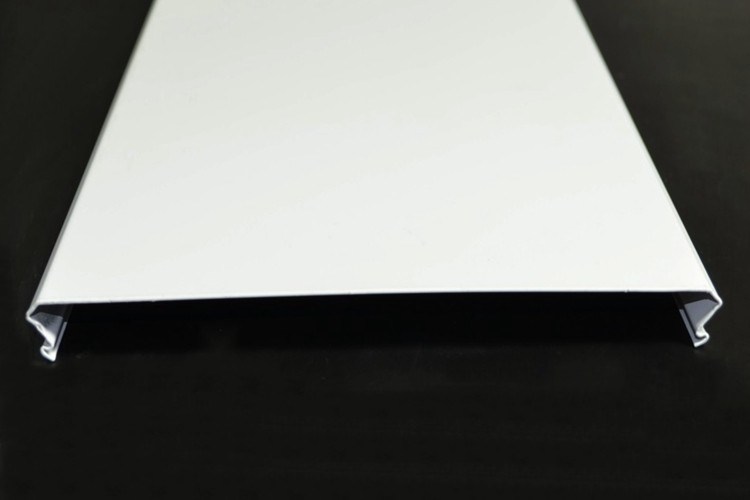

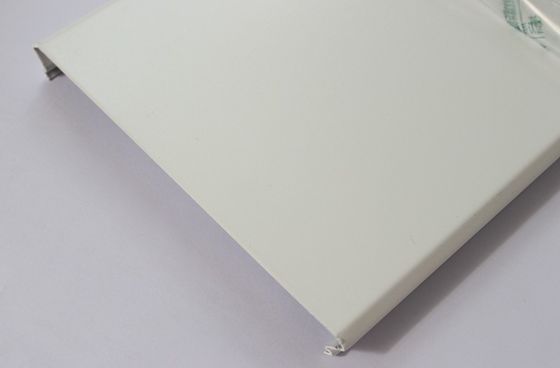

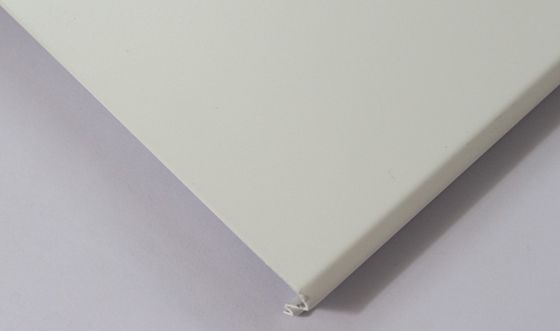

White Powder Coating C300 Suspended Aluminum Strip Ceiling Metal Aluminium Panel Cut Edge
Main products
Customized Ceiling, Metal Mesh Panel, Aluminum Ceiling, Metal Ceiling, Hook on Ceiling, Aluminum Decorative Panel, Metal Column, Aluminum Louver, Baffle Ceiling, Wall Cladding
C-shaped Strip Ceiling Brochure & Project Show.pdf
Specification
| Ceiling Type | Width(mm) | Length(mm) | Thickness(mm) | Edge Type |
| C-shaped Closed Strip Ceiling | C75,C100 | 1000-6000 | 0.5-0.7 | Straight Edge |
| C150 | 0.6-0.8 | Straight Edge | ||
| C200 | 0.6-0.9 | Beveled Edge | ||
| C300 | 0.7-1.1 | Beveled Edge |
Product details
1. Product Name: C-shaped Strip Ceiling
2. Color: White or RAL color available
3. Standard Size: C75, C100, C150, C200, C300,
4. Surface finishing: Akzo Nobel powder coating
5. Material: Aluminum alloy
6. Thickness: 0.7mm-1.1mm
7. Shape: C-shaped
8. Edge profile: Bevel
9. Perforation: 1.0, 1.8, 2.3mm round straight holes or plain
10. Warranty: 8 years
Surface Finish
Painted finishes: Factory-applied polyester paint.
Custom colors also available.
Available in White, Silver Grey, Wood Looks powder-coated, post-production finishes.
Features
1. Beautiful appearance, and various colors for choice;
2. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
3. Nice pigment wet ability, no static, non - flammable;
4. Fireproof, anti - corrosion, thermo stability and good weather resistance;
5. Multiple accessibility options;
6. Various standard and wide choice perforations;
7. Easy & fast to install;
8. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;
Accessories
C-shaped strip Carrier, M6 Bar, L25 Wall Angle
Application
Industrial and civil buildings, special buildings, large span steel structure, interior wall decoration, exhibition halls, airports, stadiums, anti - corrosion of steel structures, oil platform, ships, chemical pipelines, airplane, bridges, partition panel etc.
Storage and Handling
Ceiling panels shall be stored in a dry interior location and shall remain in cartons prior to installation to avoid damage.
Installation
C-shaped Closed Strip Ceiling features at fireproof, anti - corrosion, thermo stability and good weather resistance. The colors keep fresh for a long time. Many kinds of sizes are available. It’s widely used in office buildings, shopping malls, railway station, airport, big clubs and etc.
