Colored Aluminum Honeycomb 4 x 8 Panel For municipal buildings facades , GB / T28001-2011

Negotiation
Price
Colored Aluminum Honeycomb 4 x 8 Panel For municipal buildings facades , GB / T28001-2011
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

aluminium Honeycomb sheet

,

decorative metal wall panels

Basic Infomation
Place of Origin: China Mainland
Brand Name: OUSILONG
Certification: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test
Model Number: N/A
Payment & Shipping Terms
Packaging Details: Export carton
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 4,000 PCS/week
Product Description

4 x 8 PVDF coated Aluminum Honeycomb Panel / Aluminium Honeycomb Panel Sheet

Aluminum Honeycomb Panel, decorative panel, shopping mall, exhibition hall


Product details

1. Product code: N/A

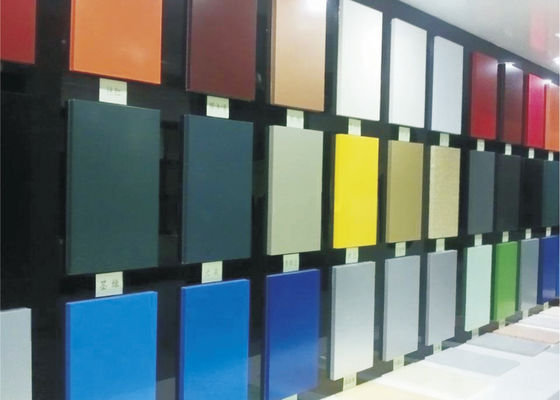

2. Color: RAL color available
3. Dimension: 1220 x 2440mm, Custom made available
4. Surface finishing: Fluorine carbon coated
5. Material: Aluminum alloy
6. Thickness: 10mm, 6~90mm available
7. Shape: Custom made available
8. Temperature tolerance: -60℃~ +120℃
9. Warranty: 15-20 years


Specification


 Type

 Material

 Thickness

 Surface
 Coating

 Size

 Color

 Aluminum  Honeycomb  Panel

 Aluminum    alloy

 Standard  thickness:

 10, 12, 15,

 18, 20,  25mm;  Custom

 made

 available

 Fluorine

 carbon

 coated

 Standard width:

 1220, 1250, 1500mm

 Length≤6000mm

 Width≤1500mm

 Subject

 to user  demand



Features:

1. Aluminum Honeycomb Panel bases on grade 3003 aluminum alloy sheet, and the aluminum sheet owns
   water - proof property. After PVDF coated on its surface, the whole panel has weather resistance, chemical preservation and etc;
2. When in installation, panels are tightly connected with sealed aluminum profiles from four sides, so as to
   prevent rainwater from osmosis;
3. Plug - in installation method & weather silicone sealant are applied to achieve the best water - proof effect;
4. Durable, Washable, Scrubbable, Mortar - resistant, Corrosion - resistance;
5. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
6. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;


Accessaries:

Aluminum Honeycomb Panel is with professional mold design, even panel surface, distinct edges & lines, and clear & concise. All of these create a pleasant visual space. It has multiple accessibility options.


Colored Aluminum Honeycomb 4 x 8 Panel For municipal buildings facades , GB / T28001-2011 0




Application:

Industrial and civil buildings, special buildings, large span steel structure, building roof, exterior & interior wall decoration, facades of municipal buildings, exhibition halls, airports, stadiums, anti - corrosion of steel structures, oil platform etc.




Installation:

OUSILONGTM aluminum honeycomb panel is fully made from aluminum which is recyclable and environmental friendly. Besides, the fusion point of aluminum is 660.4℃, so the panel is ultimately fireproof.  Since it weighs much lighter but with high intensity, the panel can be widely used on curtain wall. Especially on buildings, it’s capable to bear strong wind pressure so that it meets requirement for large lattices on the curtain wall of super big & high buildings. This product also has good flatness and it is easy to process.

Colored Aluminum Honeycomb 4 x 8 Panel For municipal buildings facades , GB / T28001-2011 1
