Roof Aluminum Wall Panels / Perforated Acoustic Metal Ceiling Tiles Sheet

Negotiation
Price
Roof Aluminum Wall Panels / Perforated Acoustic Metal Ceiling Tiles Sheet
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

decorative metal wall panels

,

aluminium Honeycomb sheet

Basic Infomation
Place of Origin: China Mainland
Brand Name: OUSILONG
Certification: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test
Model Number: N/A
Payment & Shipping Terms
Packaging Details: Export carton
Delivery Time: 15 working days
Payment Terms: T/T, L/C
Supply Ability: 4,000 PCS/week
Product Description

Roof Aluminum Wall Panel / Perforated Acoustic Metal Ceiling Tiles Sheet

Aluminum Paneltransportation, meeting room, hospitality, healthcare

Product details

1. Product code: N/A
2. Color: Silver, RAL color available
3. Dimension: 300 x 300mm, custom made available
4. Surface finishing: PVDF spray coating
5. Material: Aluminum alloy
6. Thickness: 2.0mm, 2.5mm, 3.0mm, custom made available
7. Shape: Square, custom made available
8. Edge profile: straight & beveled available
9. Warranty: 15-20 years


Specification



 Type

 Material

 Thickness

 Surface
 Coating

 Size

 Component

 Color

 Aluminum  Panel

 rustproof  high -  strength

 alloy  aluminum  sheet

 2.0mm,  2.5mm,  3.0mm

 multi - layer

 PVDF coating

 involving

  international

 known  paints e.g.  PPG(USA),

 AKZO - NOBEL,  Valspa  as base

 materials

 Length≤6.0m

 Width≤1.8m

 Reinforcement,  hanger

 Silver,  subject

 to user

 demand



Features

1. Durable, Washable, Scrubbable, Mortar - resistant;
2. Multiple accessibility options;
3. Various standard and wide choice perforations;
4. Excellent fire (&weather) - resistance performance;
5. Custom made metal walls available to coordinate with ceilings and other interior / exterior finishings;
6. Nice pigment wet ability, no static, non - flammable;
7. Overlong weather resistance, anti-acid, alkali;
8. Resistance, anti - corrosion, 3 to 5 times chemical resistance to common resins;
9. Good self - cleaning, high gloss, abundant colors;
10. Certificate: ISO9001:2008, ISO14001:2004, CE, GB/T28001-2011, SGS Test etc;



Coating Diagram

PVDF - coated aluminum panel involves alloy panel as base material, which is coated with primer and color finish paint after pretreatment and sprayed with PVDF on surface layer.

The product is fabricated by three - coating & one - baking of PVDF paint. Curing quality is the key for the product. Curing oven of air bridge - based design is adopted, which provides temperature of fluctuation within ±2 ℃. The temperature evenness brings performance of PVDF paint film up to optimal state.

Our company successively introduced LFK numerical control sheet metal equipment, German MILLER argon arc welding machine and Japanese RANSBAG full - automatic coating equipment, all advanced in the world. Adopting high - quality alloy aluminum sheet, German HENKEL pretreatment agent, AKZO - NOBEL, PPG and Valspar PVDF coating, the company strictly observes requirements in ISO9001-2008 quality management system to bring product quality up to the internal control standard AAMA2605-98.


Roof Aluminum Wall Panels / Perforated Acoustic Metal Ceiling Tiles Sheet 0



Characteristics


1. Free shape, aesthetics of personality
Different geometric figures can be made by bending, punching and arc rolling subject to user demand, presenting designer’s idea in full.

2. Strong weather resistance, good self - cleaning performance

The PVDF base materials Kynal 500 and Hylar 5000 (content:70%) can effectively resist acid rain, air pollution and ultraviolet ray. Special molecular structure can prevent dust from attachment to surface thus provide good self - cleaning performance.

3. Good fire prevention in accordance with fire fighting requirements

Acting as ornaments of the product, high - strength aluminum alloy, PVDF paint and stone panel are non - flammable thus fire acceptance can be passed in full.



Application

Building exterior wall, anti - corrosion of steel structure, oil platform, ships, chemical pipelines, airplane, bridges and etc.

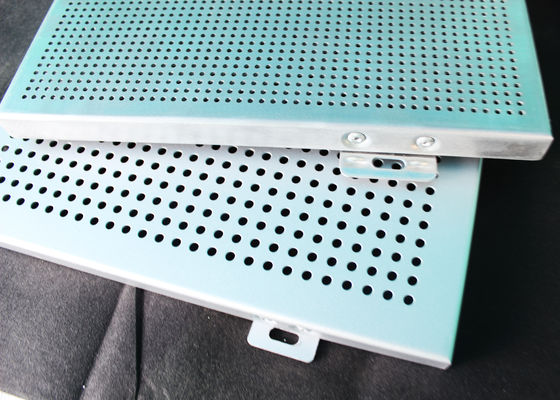

Parts of actual models of aluminum panel

Roof Aluminum Wall Panels / Perforated Acoustic Metal Ceiling Tiles Sheet 1



Installation

OUSILONG ceilings feature at fireproof, anti - corrosion, thermo stability and good weather resistance. The colors keep fresh for a long time. Many kinds of sizes are available.

Roof Aluminum Wall Panels / Perforated Acoustic Metal Ceiling Tiles Sheet 2
