Product Details:
Payment & Shipping Terms:
|
| Surface Treatment: | PVDF Coated, Brushed, Anodized, Mirror | Usage: | Outdoor, Indoor |
|---|---|---|---|
| Color: | Customer's Requirements | Size: | 1220*2440mm, Customized |
| Panel Thickness: | 10-30mm | Material: | Aluminum |
| Core: | Alumnium | Package: | Protective Film + Wooden Case |
| Highlight: | architectural metal wall panels,decorative metal wall panels,1220x2440mm aluminium composit honeycomb panel |
||

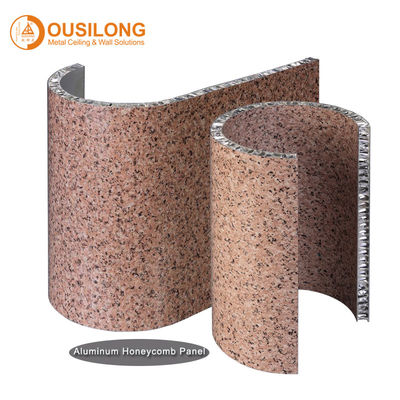

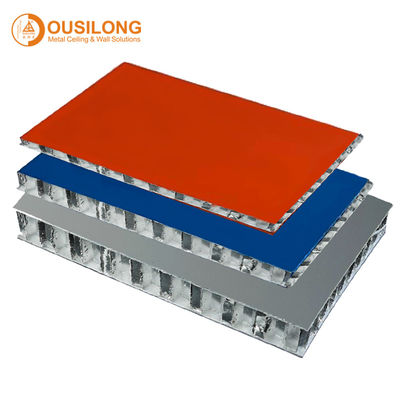

Interior Facade Wall Ceiling Cladding Decorative Aluminum Aluminium Composite Honeycomb Panel
Main products
Customized Ceiling, Metal Mesh Panel, Aluminum Ceiling, Metal Ceiling, Hook on Ceiling, Aluminum Decorative Panel, Metal Column, Aluminum Louver, Baffle Ceiling, Wall Cladding
Product details
1. Product code: N/A
2. Color: Black / Stone, RAL color available
3. Dimension: 600 x 1200mm, Custom made available
4. Surface finishing: Fluorine carbon coated
5. Material: Aluminum alloy
6. Thickness: 12mm, 6~90mm available
7. Shape: Custom made available
8. Temperature tolerance: -60℃~ +120℃
9. Warranty: 15-20 years
Specification
|
Type |
Material |
Thickness |
Surface Coating |
Size |
Color |
|
Aluminum Honeycomb Panel |
Aluminum alloy |
Standard thickness:10, 12, 15, 18, 20, 25mm; Custom made available |
Fluorine carbon coated |
Standard width:1220, 1250, 1500mm Length≤6000mm Width≤1500mm |
Black / Stone, subject to user demand |
Features
1. Aluminum Honeycomb Panel bases on grade 3003 aluminum alloy sheet, and the aluminum sheet owns
water-proof property. After PVDF coated on its surface, the whole panel has weather resistance, chemical
preservation and etc;
2. When in installation, panels are tightly connected with sealed aluminum profiles from four sides, so as to
prevent rainwater from osmosis;
3. Plug-in installation method & weather silicone sealant are applied to achieve the best water-proof effect;
4. Durable, Washable, Scrubbable, Mortar-resistant, Corrosion-resistance;
5. Custom made metal walls available to coordinate with ceilings and other interior/exterior finishings;
6. Unique system solutions or custom made designs;
7. Outstanding performance with high quality products;
8. Extensive in-house production capabilities;
9. A wealth of industry experience;
10. Certificate: ISO9001:2008, ISO14001:2004, GB/T28001-2011, SGS Test etc;
Accessarios
Aluminum Honeycomb Panel is with professional mold design, even panel surface, distinct edges & lines, and clear & concise. All of these create a pleasant visual space. It has multiple accessibility options.
Application
Industrial and civil buildings, special buildings, large span steel structure, building roof, exterior & interior wall decoration, facades of municipal buildings, exhibition halls, airports, stadiums, anti-corrosion of steel structures, oil platform etc.
Installation
OUSILONGTM aluminum honeycomb panel is fully made from aluminum which is recyclable and environmental friendly. Besides, the fusion point of aluminum is 660.4℃, so the panel is ultimately fireproof. Since it weighs much lighter but with high intensity, the panel can be widely used on curtain wall. Especially on buildings, it’s capable to bear strong wind pressure so that it meets requirement for large lattices on the curtain wall of super big & high buildings. This product also has good flatness and it is easy to process.
